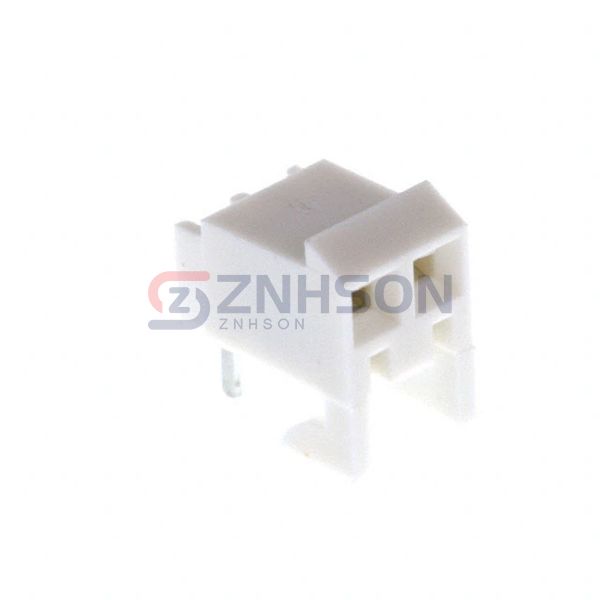

0009481024
Molex
Molex
CONN RCPT 2P 0.156 TIN EDGE MNT
$0.90
Available to order
Reference Price (USD)
1+
$0.90000
500+
$0.891
1000+
$0.882
1500+
$0.873
2000+
$0.864
2500+
$0.855
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic assemblies with 0009481024 Molex Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors provide secure, high-density connections for compact devices and complex systems. With options for surface mount, through-hole, and press-fit terminations, they cater to diverse design requirements. Ideal for wearable technology, test & measurement instruments, and LED lighting, Molex connectors deliver consistent quality. Applications include fitness trackers, oscilloscopes, and architectural lighting systems.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 2
- Number of Positions Loaded: All
- Pitch - Mating: 0.156" (3.96mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Mounting Type: Board Edge, Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Insulation Color: Natural
- Insulation Height: 0.308" (7.82mm)
- Contact Length - Post: 0.145" (3.68mm)
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Board Hooks
- Current Rating (Amps): 5A
- Voltage Rating: 600V
