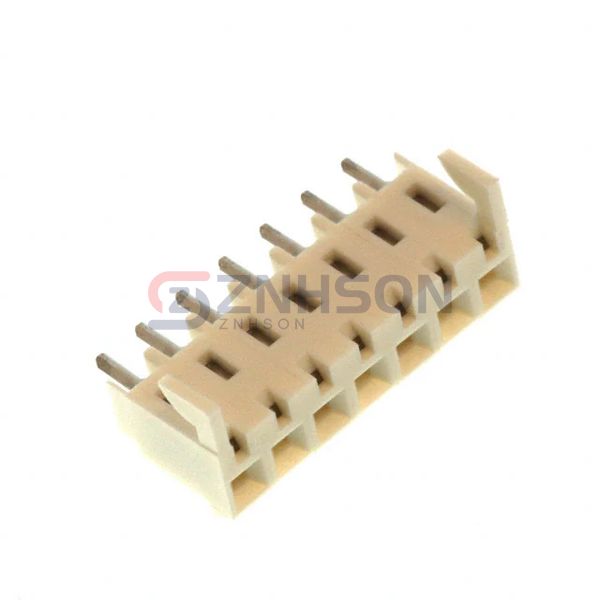

0009483076
Molex
Molex
CONN RCPT 7POS 0.156 GOLD PCB
$1.59
Available to order
Reference Price (USD)
1+
$1.59395
500+
$1.5780105
1000+
$1.562071
1500+
$1.5461315
2000+
$1.530192
2500+
$1.5142525
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic systems with the 0009483076 Molex Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors are engineered for high durability, efficient signal transmission, and easy installation. Perfect for applications in automotive systems, medical devices, and data centers, they ensure stable connections under varying conditions. With features like corrosion-resistant materials and secure locking mechanisms, Molex connectors are the go-to choice for professionals. Common uses include server backplanes, control panels, and handheld devices.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 7
- Number of Positions Loaded: All
- Pitch - Mating: 0.156" (3.96mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Insulation Color: Natural
- Insulation Height: 0.449" (11.40mm)
- Contact Length - Post: 0.120" (3.05mm)
- Operating Temperature: -40°C ~ 80°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Board Hooks
- Current Rating (Amps): 4.5A
- Voltage Rating: 600V
Related Products
Mill-Max Manufacturing Corp.
803-47-082-20-001000
Samtec Inc.
FLE-158-01-G-DV
Samtec Inc.
SFM-110-T2-S-D-K
TE Connectivity AMP Connectors
1747468-1
Samtec Inc.
HLE-113-02-S-DV-BE-TR
Preci-Dip
803-83-014-30-001101
Samtec Inc.
CLM-120-02-L-D-BE-A-K
Preci-Dip
801-87-012-30-002101

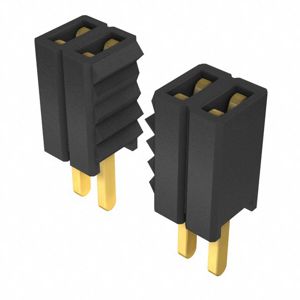

Samtec Inc.
