0009483125
Molex
Molex

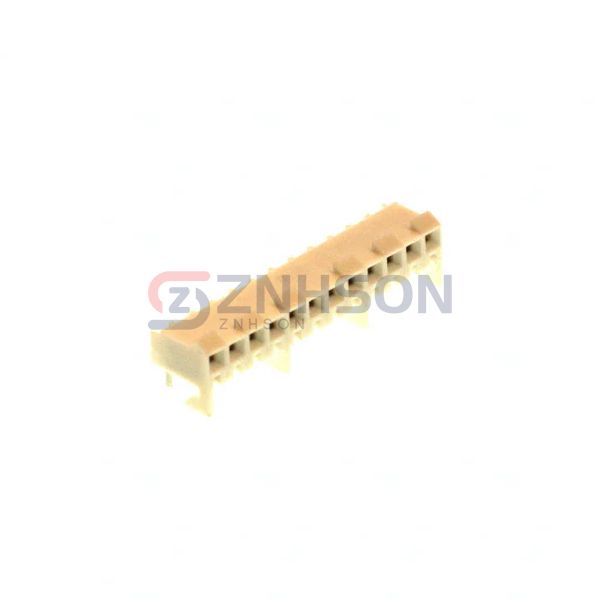

CONN RCPT 12P 0.156 GOLD EDGE MT
$4.04
Available to order
Reference Price (USD)
1+
$4.58000
10+
$4.39200
100+
$3.66000
500+
$3.11100
1,000+
$2.65350
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0009483125 Molex Rectangular Connectors - Headers, Receptacles, and Female Sockets are designed for precision and reliability in critical applications. Featuring gold-plated contacts, polarized housings, and waterproof options, these connectors excel in marine, oil & gas, and transportation industries. Their robust design prevents misalignment and ensures long-term performance. Examples include underwater sensors, railway signaling systems, and offshore drilling equipment. Choose Molex for connectors that meet the highest industry standards.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 12
- Number of Positions Loaded: All
- Pitch - Mating: 0.156" (3.96mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Mounting Type: Board Edge, Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Insulation Color: Natural
- Insulation Height: 0.308" (7.82mm)
- Contact Length - Post: 0.145" (3.68mm)
- Operating Temperature: -40°C ~ 80°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Board Hooks
- Current Rating (Amps): 4.5A
- Voltage Rating: 600V
