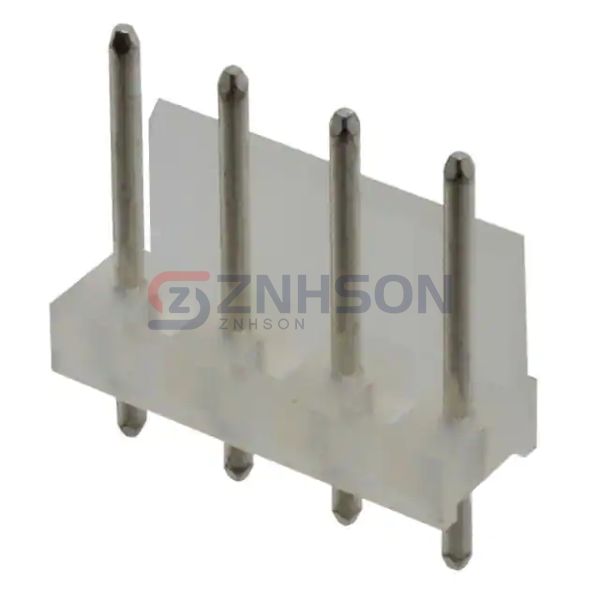

0010085041
Molex
Molex
CONN HEADER VERT 4POS 5.08MM
$1.00
Available to order
Reference Price (USD)
1+
$0.78000
10+
$0.68700
100+
$0.59290
500+
$0.48510
1,000+
$0.43120
5,000+
$0.37730
10,000+
$0.35844
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 0010085041 rectangular connector header from Molex, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 0010085041 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Molex guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.200" (5.08mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.450" (11.43mm)
- Contact Length - Post: 0.175" (4.45mm)
- Overall Contact Length: 0.750" (19.05mm)
- Insulation Height: 0.375" (9.53mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-2
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
1-2842103-0
Samtec Inc.
FTM-110-03-LM-DV-S-P-TR
Samtec Inc.
TSM-110-03-F-DH-A-K-TR
Sullins Connector Solutions
GRPB052VWVN-RC
Mill-Max Manufacturing Corp.
349-10-143-00-560000
Samtec Inc.
TFC-130-12-F-D-K-TR
Preci-Dip

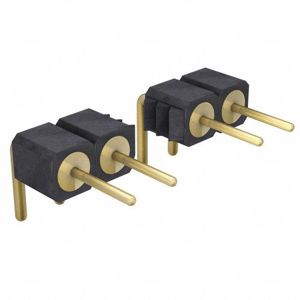

399-10-125-10-009101
