0010845020
Molex
Molex
CONN HEADER VERT 2POS 6.35MM
$0.56
Available to order
Reference Price (USD)
1+
$0.44000
10+
$0.41600
100+
$0.31900
500+
$0.27740
1,000+
$0.22886
5,000+
$0.20112
10,000+
$0.18725
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

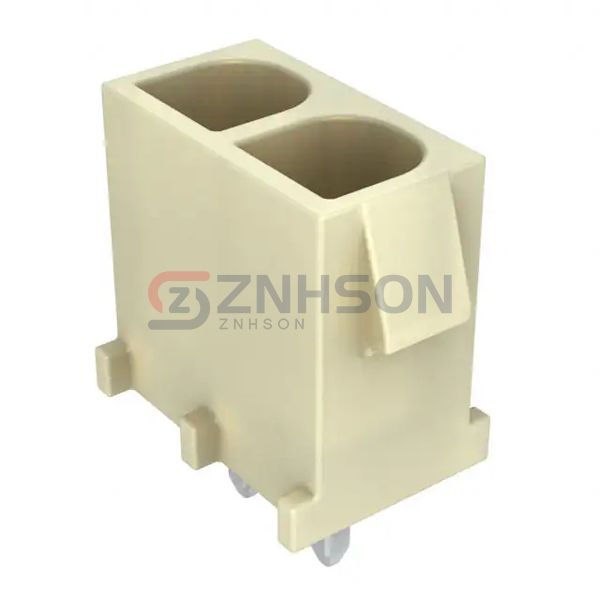

The 0010845020 male pin header by Molex offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Molex for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.250" (6.35mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.169" (4.30mm)
- Overall Contact Length: -
- Insulation Height: 0.550" (13.97mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 137.8µin (3.50µm)
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
