0010845120
Molex
Molex

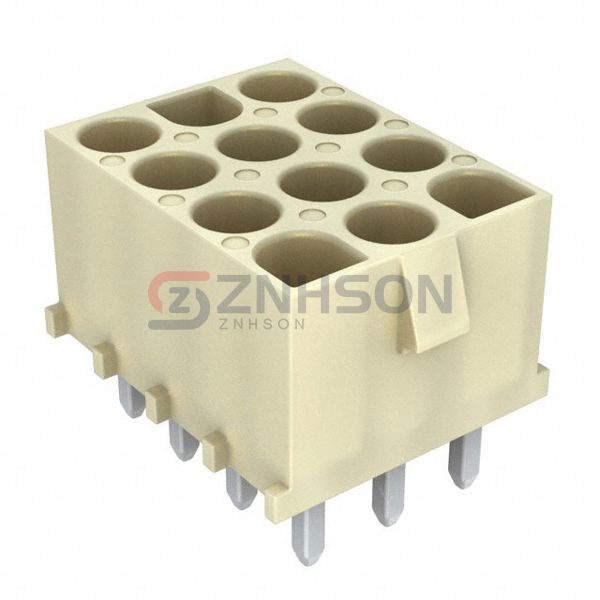

CONN HEADER VERT 12POS 6.35MM
$2.03
Available to order
Reference Price (USD)
1+
$1.59000
10+
$1.44700
100+
$1.24010
500+
$1.03338
1,000+
$0.88575
5,000+
$0.78537
10,000+
$0.76765
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 0010845120 rectangular connector header from Molex. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 0010845120 is perfect for automotive, industrial, and consumer electronics. Molex ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.250" (6.35mm)
- Number of Positions: 12
- Number of Rows: 3
- Row Spacing - Mating: 0.250" (6.35mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.169" (4.30mm)
- Overall Contact Length: -
- Insulation Height: 0.550" (13.97mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 137.8µin (3.50µm)
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
