0010897021
Molex
Molex

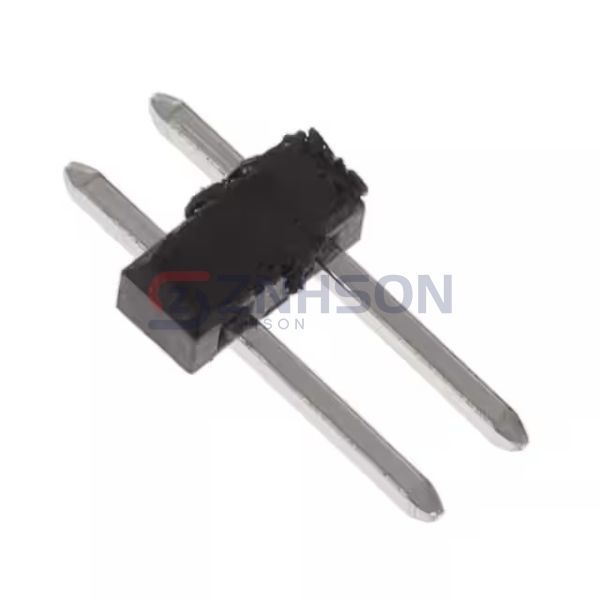

CONN HEADER VERT 2POS
$0.27
Available to order
Reference Price (USD)
1+
$0.27000
10+
$0.25600
25+
$0.21840
50+
$0.19120
100+
$0.17750
250+
$0.15704
500+
$0.15022
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 0010897021 rectangular connector header from Molex, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 0010897021 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Molex guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: -
- Number of Positions: 2
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.107" (2.71mm)
- Overall Contact Length: 0.437" (11.10mm)
- Insulation Height: 0.090" (2.29mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 150.0µin (3.81µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
