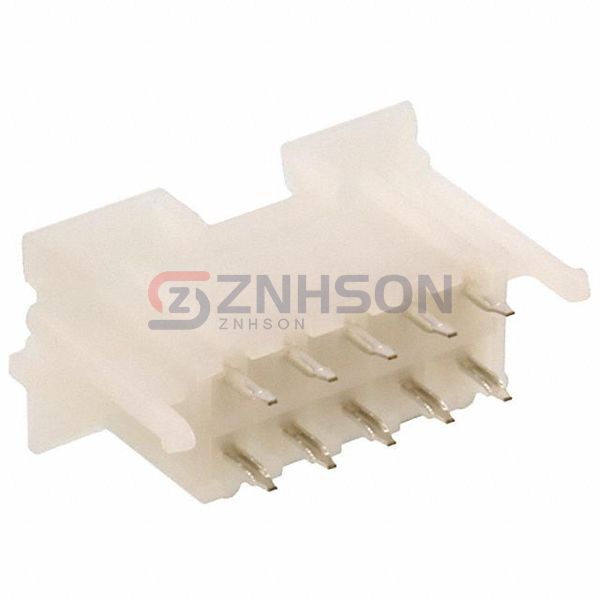

0015246101
Molex
Molex
CONN HEADER VERT 10POS 4.2MM
$2.55
Available to order
Reference Price (USD)
1+
$2.00000
10+
$1.81900
100+
$1.55930
500+
$1.29938
1,760+
$1.07663
5,280+
$0.98752
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 0015246101 rectangular connector header from Molex for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Molex is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.165" (4.20mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.555" (14.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: Board Lock
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-2
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
4-644615-4
TE Connectivity AMP Connectors
1734261-9
Sullins Connector Solutions
PBC11SADN
Amphenol ICC (FCI)
54101-S3006LF
Amphenol ICC (FCI)
68002-406HLF
Samtec Inc.
TSM-150-02-S-DH
TE Connectivity AMP Connectors
1MM-HU-D36-VS-00-H-TBP
Preci-Dip
350-10-150-00-106101
Samtec Inc.

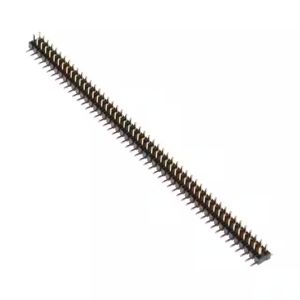

TMMH-150-01-L-DV
