0015286061
Molex
Molex
CONN HEADER VERT 6POS 4.2MM
$2.73
Available to order
Reference Price (USD)
1+
$2.32000
10+
$2.10200
25+
$1.97360
50+
$1.88780
100+
$1.80200
250+
$1.63040
500+
$1.50168
1,000+
$1.28715
2,500+
$1.20134
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0015286061 male pin header by Molex provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Molex guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.165" (4.20mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.555" (14.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: Board Lock
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-2
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
77311-129-07LF
Samtec Inc.
MMT-110-02-T-SH
TE Connectivity AMP Connectors
104693-4
Amphenol ICC (FCI)
67996-516H
Samtec Inc.

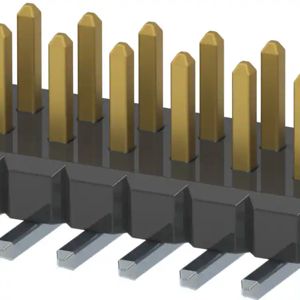

FTM-146-03-L-DV-P
Samtec Inc.

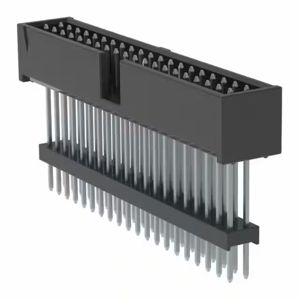

ZSS-120-05-T-D-840
Samtec Inc.

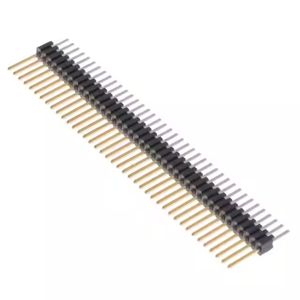

TMS-140-01-L-S
Samtec Inc.

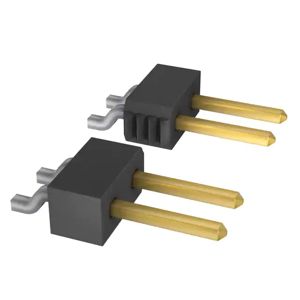

TSM-119-01-L-SH-P
