0015911642
Molex
Molex
CONN HEADER SMD 64POS 2.54MM
$6.96
Available to order
Reference Price (USD)
1+
$6.96309
500+
$6.8934591
1000+
$6.8238282
1500+
$6.7541973
2000+
$6.6845664
2500+
$6.6149355
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0015911642 by Molex is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 0015911642 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Molex ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 64
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.090" (2.29mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Board Guide
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Preci-Dip
832-10-070-20-001101
Amphenol ICC (FCI)
67998-420HLF
TE Connectivity AMP Connectors
9-146258-0-13
Amphenol Sine Systems Corp
AT04-2P-BM01
TE Connectivity AMP Connectors
1612435-4
TE Connectivity AMP Connectors
644752-5
Samtec Inc.

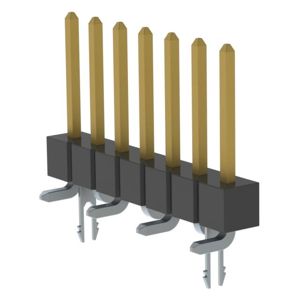

TSM-107-02-S-SV-LC-P-TR
Samtec Inc.

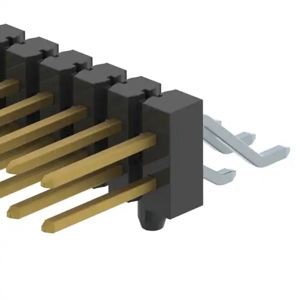

TSM-122-02-F-DH-A
