0022162120
Molex
Molex

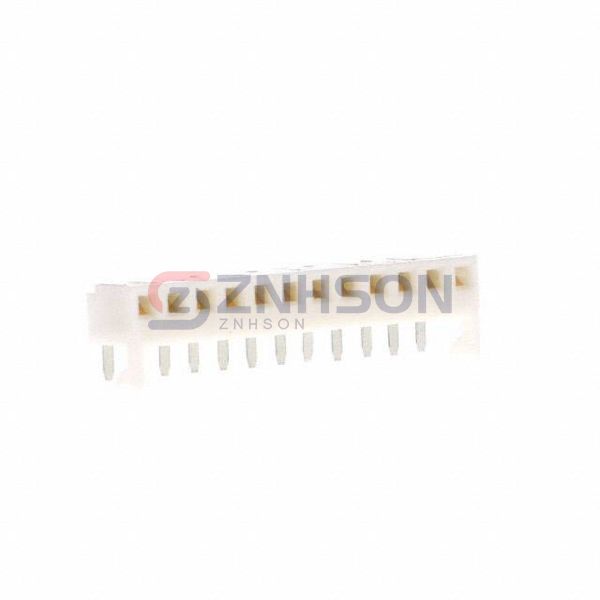

CONN RCPT 12P 0.1 GOLD EDGE MNT
$2.75
Available to order
Reference Price (USD)
1+
$2.75000
500+
$2.7225
1000+
$2.695
1500+
$2.6675
2000+
$2.64
2500+
$2.6125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0022162120 Molex Rectangular Connectors - Headers, Receptacles, and Female Sockets offer superior connectivity solutions for modern electronics. Designed with versatility in mind, these connectors support high-speed data transfer and power delivery. Their compact design and rugged build make them suitable for aerospace, military, and IoT applications. Whether you need board-to-board, cable-to-board, or wire-to-wire connections, Molex provides reliable options. Examples include avionics systems, defense equipment, and smart home devices.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Non-Gendered
- Style: Board to Board or Cable
- Number of Positions: 12
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Mounting Type: Board Edge, Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Insulation Color: White
- Insulation Height: 0.185" (4.70mm)
- Contact Length - Post: 0.132" (3.35mm)
- Operating Temperature: -40°C ~ 80°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Board Hooks
- Current Rating (Amps): 2.5A
- Voltage Rating: 250VAC
