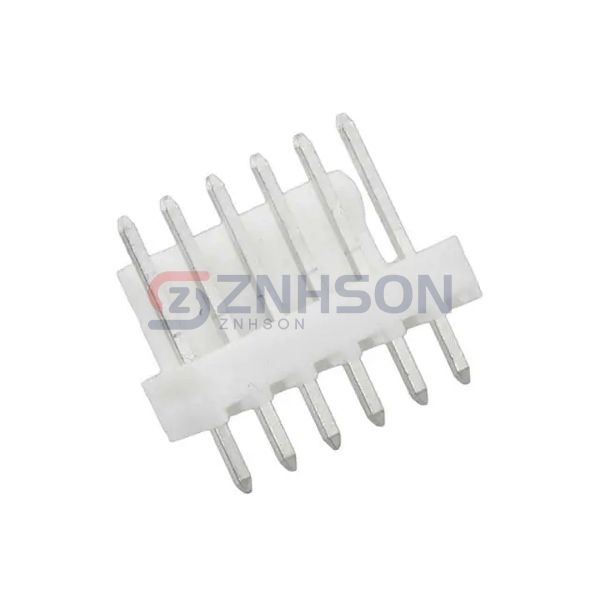

0022232061
Molex
Molex
CONN HEADER VERT 6POS 2.54MM
$0.47
Available to order
Reference Price (USD)
1+
$0.43000
10+
$0.40300
100+
$0.28180
500+
$0.24150
1,000+
$0.20125
5,000+
$0.17250
10,000+
$0.16100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0022232061 male pin header by Molex offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Molex for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.295" (7.49mm)
- Contact Length - Post: 0.140" (3.56mm)
- Overall Contact Length: 0.560" (14.22mm)
- Insulation Height: 0.322" (8.18mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): -
- Voltage Rating: -
