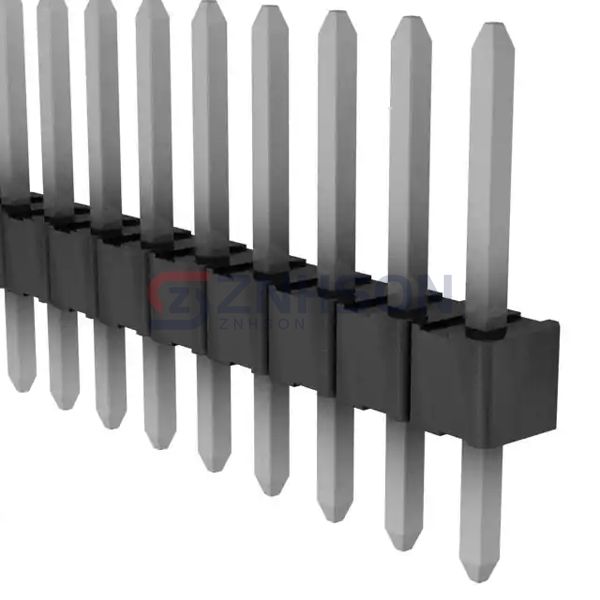

0022284122
Molex
Molex
CONN HEADER VERT 12POS 2.54MM
$0.33
Available to order
Reference Price (USD)
1+
$0.52000
10+
$0.48400
25+
$0.43560
50+
$0.38720
100+
$0.37110
250+
$0.33884
500+
$0.32272
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0022284122 from Molex is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 0022284122 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Molex for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 12
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.295" (7.49mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.505" (12.83mm)
- Insulation Height: 0.090" (2.29mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TFC-113-01-LM-D-A
Samtec Inc.
FTE-126-01-G-DV
Samtec Inc.
TSM-112-01-L-DV
TE Connectivity AMP Connectors
1-794069-1
Samtec Inc.
TMM-108-06-S-D-SM-P
Mill-Max Manufacturing Corp.
852-40-016-10-001000
Sullins Connector Solutions
GRPB441VWCN-RC
Amphenol ICC (FCI)
71918-016LF
JST Sales America Inc.

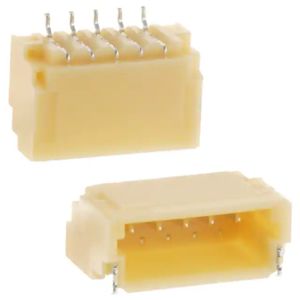

SM05B-SRSS-TB(LF)(SN)
