0022288162
Molex
Molex

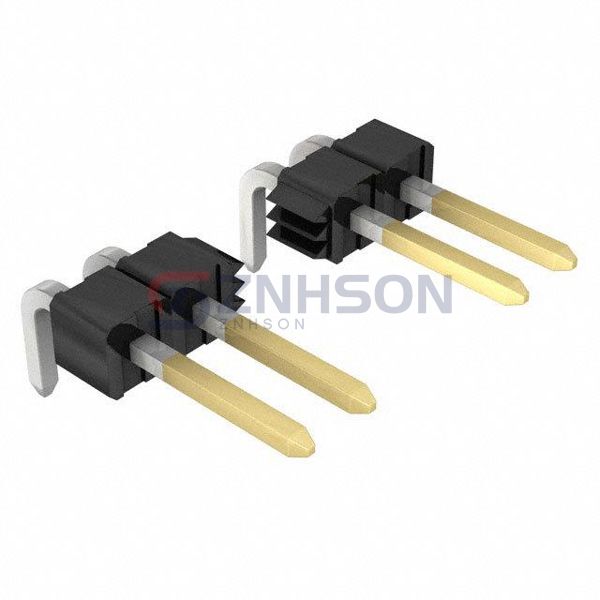

CONN HEADER R/A 16POS 2.54MM
$1.16
Available to order
Reference Price (USD)
1+
$1.16000
10+
$1.01600
25+
$0.95600
50+
$0.91620
100+
$0.87640
250+
$0.79672
500+
$0.71704
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 0022288162 rectangular connector header from Molex for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Molex is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.244" (6.20mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: -
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
