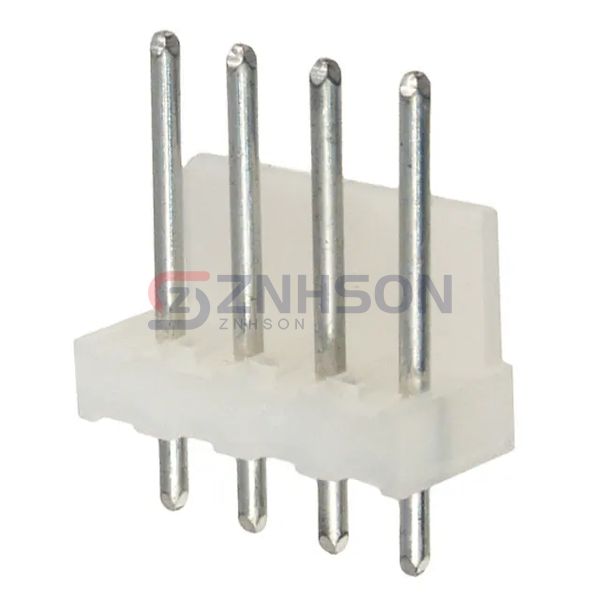

0026192041
Molex
Molex
CONN HEADER VERT 4POS 3.96MM
$1.36
Available to order
Reference Price (USD)
1+
$1.07000
10+
$0.94300
100+
$0.81330
500+
$0.66546
1,000+
$0.59152
5,000+
$0.51758
10,000+
$0.49170
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0026192041 male pin header by Molex provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Molex guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.450" (11.43mm)
- Contact Length - Post: 0.175" (4.45mm)
- Overall Contact Length: 0.750" (19.05mm)
- Insulation Height: 0.359" (9.12mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-2
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
FTE-114-02-G-DV-A-P
Preci-Dip
892-18-028-20-002101
Samtec Inc.
FTS-113-02-L-D-P
Samtec Inc.
ZSS-107-09-T-D-1165
Samtec Inc.
ZSS-105-05-S-D-885
Samtec Inc.
TSW-117-05-L-S
Amphenol ICC (FCI)
67997-106HTLF
Samtec Inc.

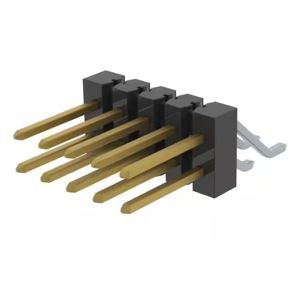

TSM-105-02-S-DH
