0026482073
Molex
Molex
CONN HEADER VERT 7POS 3.96MM
$1.92
Available to order
Reference Price (USD)
1+
$1.92000
10+
$1.73900
25+
$1.63240
50+
$1.56120
100+
$1.49030
250+
$1.34836
500+
$1.24190
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 0026482073 rectangular connector header by Molex. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 0026482073 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Molex for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 7
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.450" (11.43mm)
- Contact Length - Post: 0.172" (4.37mm)
- Overall Contact Length: 0.750" (19.05mm)
- Insulation Height: 0.360" (9.14mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Sullins Connector Solutions
GRPB091VWVN-RC
TE Connectivity AMP Connectors
3-644754-5
Samtec Inc.
EHT-113-01-S-D-SM-LC-TR
TE Connectivity AMP Connectors
1-440052-0
Samtec Inc.

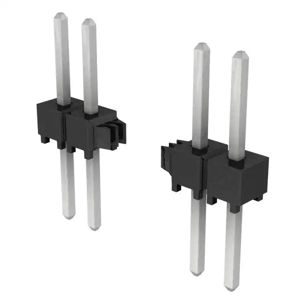

TSW-147-08-T-S
Samtec Inc.

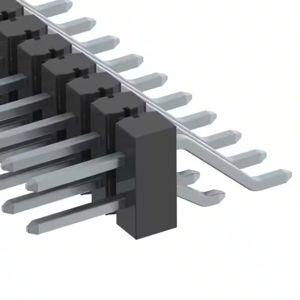

TSM-120-01-T-DH-P
Harwin Inc.

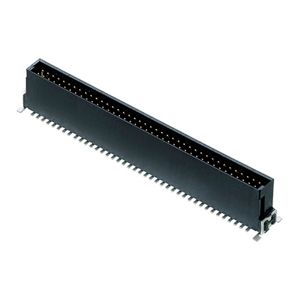

M55-7028042R
TE Connectivity AMP Connectors

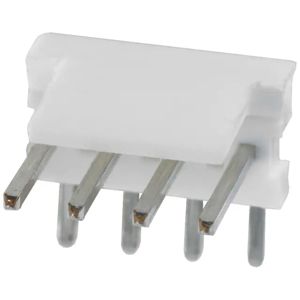

640455-4
Preci-Dip

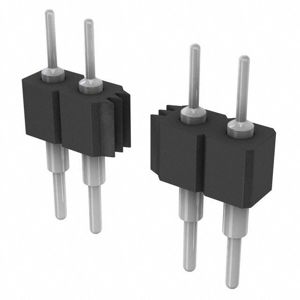

351-80-127-00-017101
