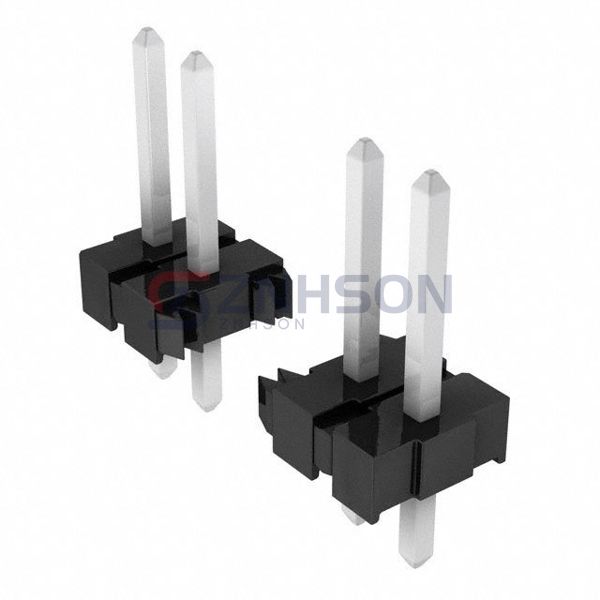

0026503164
Molex
Molex
CONN HEADER VERT 16POS 3.96MM
$0.81
Available to order
Reference Price (USD)
2,400+
$0.65801
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 0026503164 rectangular connector header from Molex, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 0026503164 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Molex guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 16
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: 14
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.450" (11.43mm)
- Contact Length - Post: 0.172" (4.37mm)
- Overall Contact Length: 0.750" (19.05mm)
- Insulation Height: 0.128" (3.25mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
77315-107-04LF
TE Connectivity AMP Connectors
1-2842130-0
Samtec Inc.

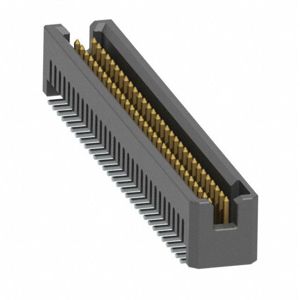

TFM-150-32-L-D-A
