0039281043
Molex
Molex
CONN HEADER VERT 4POS 4.2MM
$0.85
Available to order
Reference Price (USD)
1+
$0.81000
10+
$0.71400
100+
$0.61620
500+
$0.50418
1,000+
$0.44816
5,000+
$0.39214
10,000+
$0.37253
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 0039281043 rectangular connector header from Molex. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 0039281043 is perfect for automotive, industrial, and consumer electronics. Molex ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.165" (4.20mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.504" (12.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 35.4µin (0.90µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-2
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-107-01-LM-DH-P-TR
Amphenol ICC (FCI)
68691-106HLF
Molex
1511173012
TE Connectivity AMP Connectors
5-104746-2
Samtec Inc.
FTSH-126-01-F-DH
Oupiin
2241-C1X06G00DBU
Samtec Inc.
TMM-113-01-G-D-SM
Samtec Inc.

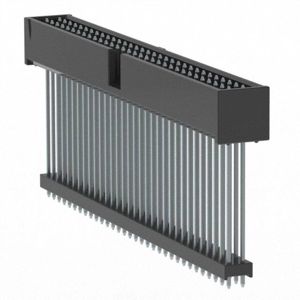

ZSS-132-08-T-D-1240
