0039299123
Molex
Molex

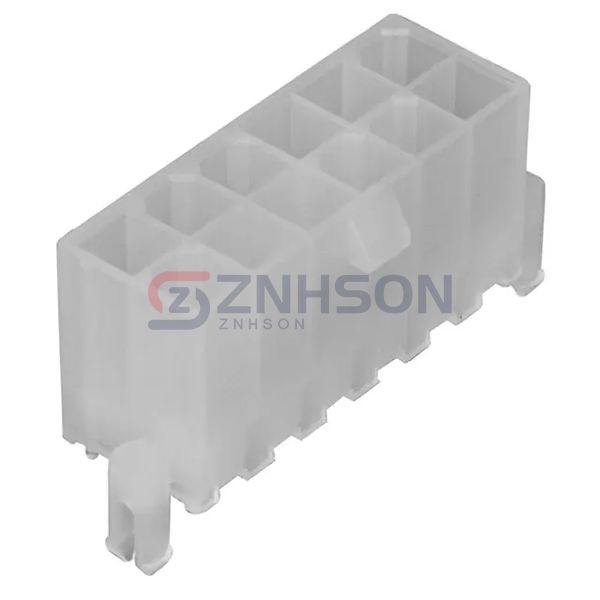

CONN HEADER VERT 12POS 4.2MM
$2.21
Available to order
Reference Price (USD)
1+
$1.74000
10+
$1.57700
100+
$1.35140
500+
$1.12612
2,400+
$0.90090
7,200+
$0.85586
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0039299123 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.165" (4.20mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.504" (12.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 35.4µin (0.90µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: Board Lock
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-2
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
