0039532054
Molex
Molex

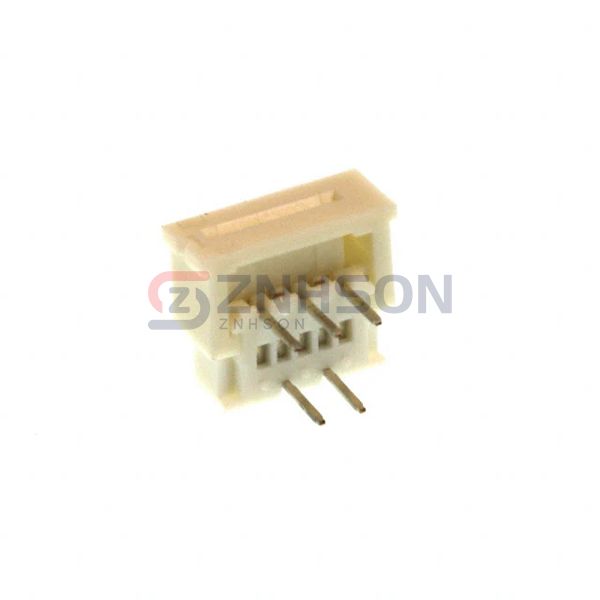

CONN FFC FPC TOP 5POS 1.25MM R/A
$0.77
Available to order
Reference Price (USD)
1+
$0.67000
10+
$0.62800
25+
$0.56520
50+
$0.50240
100+
$0.48140
250+
$0.43952
500+
$0.41860
1,500+
$0.33488
3,000+
$0.31395
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's potential with Molex's 0039532054 FFC/FPC Connectors the epitome of precision and adaptability. These connectors feature a unique combination of bend resistance, high pin density, and corrosion-resistant materials, ensuring longevity in dynamic environments. The 0039532054 is particularly suited for AR/VR headsets, automotive infotainment, and military communications. With Molex's patented contact technology, signal loss is minimized even at high frequencies. Whether for prototyping or mass production, 0039532054 offers a scalable solution for all your flexible connection requirements.
Specifications
- Product Status: Active
- Flat Flex Type: FFC, FPC
- Mounting Type: Through Hole, Right Angle
- Connector/Contact Type: Contacts, Top
- Number of Positions: 5
- Pitch: 0.049" (1.25mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.213" (5.40mm)
- Locking Feature: Slide Lock
- Cable End Type: Straight
- Contact Material: Phosphor Bronze
- Contact Finish: Tin Bismuth
- Housing Material: Polybutylene Terephthalate (PBT), Polyester
- Actuator Material: Polybutylene Terephthalate (PBT), Polyester
- Features: Zero Insertion Force (ZIF)
- Voltage Rating: 200V
- Operating Temperature: -20°C ~ 80°C
- Material Flammability Rating: UL94 V-0
