0050362426
Molex
Molex

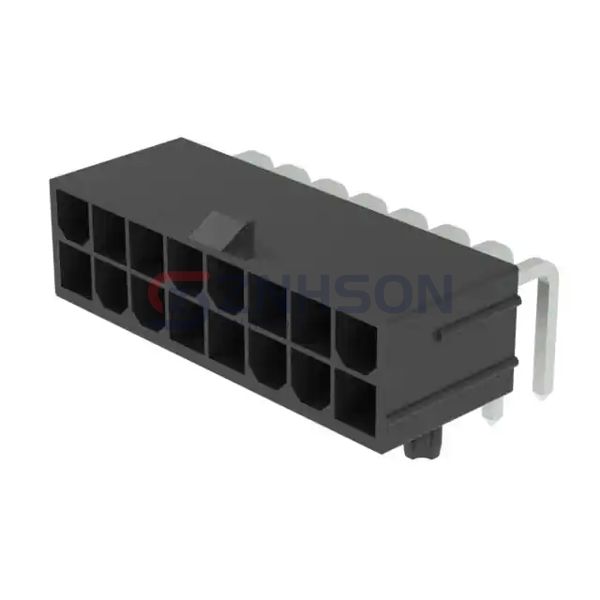

CONN HEADER R/A 16POS 4.2MM
$2.88
Available to order
Reference Price (USD)
1+
$2.45000
10+
$2.22000
100+
$1.90280
500+
$1.58568
1,440+
$1.35915
5,760+
$1.20511
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0050362426 male pin header by Molex offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Molex for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.165" (4.20mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.142" (3.60mm)
- Overall Contact Length: -
- Insulation Height: 0.378" (9.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Board Lock
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
