008383014000010
KYOCERA AVX
KYOCERA AVX
CONN HEADER VERT 14POS 2.54MM
$1.13
Available to order
Reference Price (USD)
5,600+
$1.07730
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

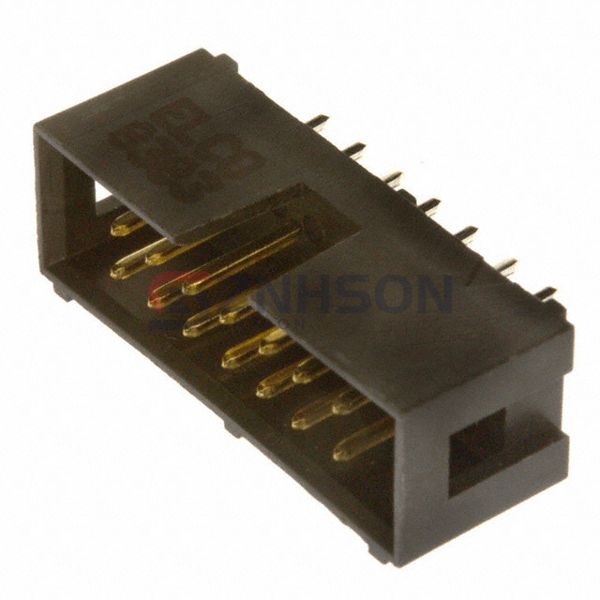

The 008383014000010 by KYOCERA AVX is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 008383014000010 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. KYOCERA AVX ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.242" (6.15mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: -
- Insulation Height: 0.376" (9.55mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Nickel
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Keying Slot
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Beige
- Current Rating (Amps): 1A
- Voltage Rating: 350V
