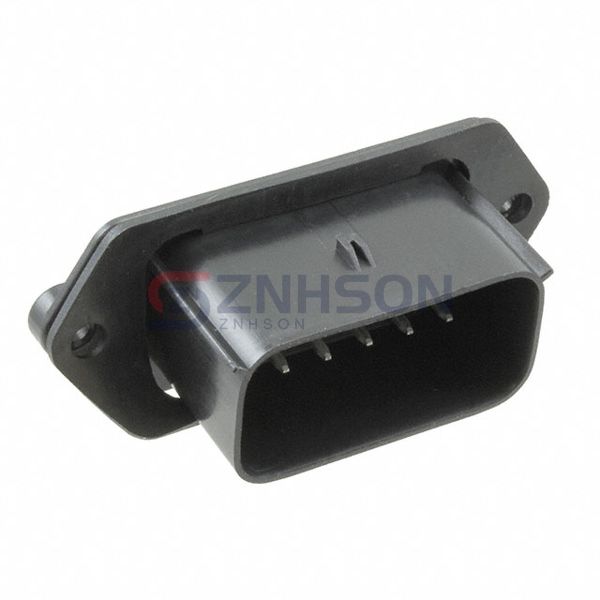

0194280015
Molex
Molex
CONN HEADER VERT 12POS 5.84MM
$8.84
Available to order
Reference Price (USD)
1+
$6.65000
10+
$6.37100
240+
$5.26300
720+
$4.43200
1,200+
$3.87800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0194280015 by Molex is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 0194280015 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Molex ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.230" (5.84mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.236" (6.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Panel Mount, Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 1.562" (39.66mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Board Guide, Mounting Flange
- Operating Temperature: -
- Ingress Protection: IP67 - Dust Tight, Waterproof
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TFC-150-32-F-D-A-K-TR
TE Connectivity AMP Connectors
1-1744427-0
Molex
0050290053
Molex
0026481105
Samtec Inc.
TSM-109-03-T-DV-P-TR
Preci-Dip
830-80-039-20-001101
Samtec Inc.
FTSH-106-04-F-DV-A
Samtec Inc.
TSS-105-04-S-D-RA
Preci-Dip

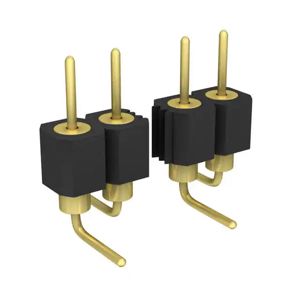

350-10-151-00-106101
