02519091102
HARTING
HARTING

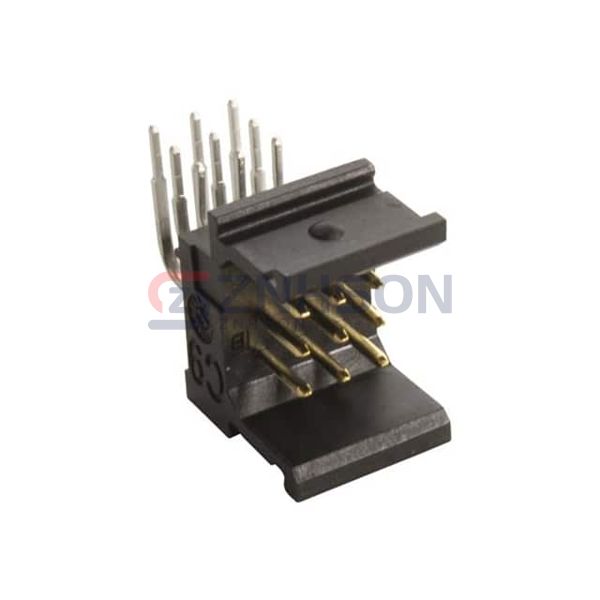

9 POSITION 2A ANGLED MALE
$3.36
Available to order
Reference Price (USD)
1+
$3.36000
500+
$3.3264
1000+
$3.2928
1500+
$3.2592
2000+
$3.2256
2500+
$3.192
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 02519091102 rectangular connector header from HARTING. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 02519091102 is perfect for automotive, industrial, and consumer electronics. HARTING ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 9
- Number of Rows: 3
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.579" (14.70mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: -
