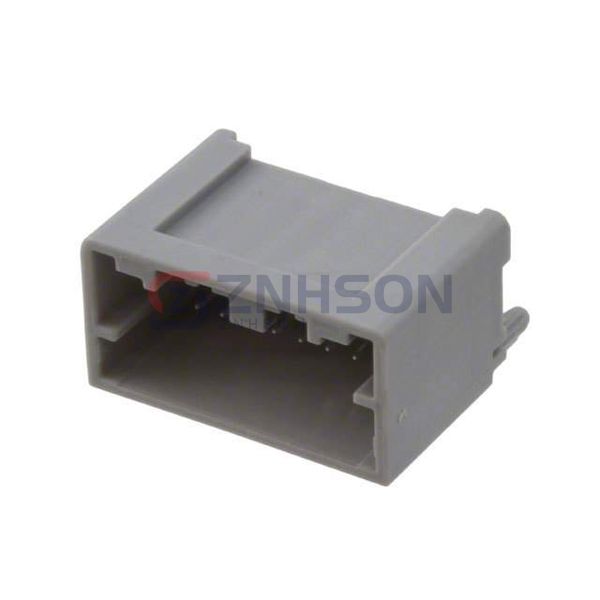

0348250125
Molex
Molex
CONN HEADER VERT 12POS 2MM
$2.02
Available to order
Reference Price (USD)
1+
$1.59000
10+
$1.45700
100+
$1.26480
520+
$1.07231
1,040+
$0.93483
5,200+
$0.84135
10,400+
$0.82485
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0348250125 by Molex is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 0348250125 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Molex ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.218" (5.55mm)
- Contact Length - Post: 0.113" (2.87mm)
- Overall Contact Length: -
- Insulation Height: 0.614" (15.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Syndiotactic Polystyrene (SPS), Glass Filled
- Features: Board Guide, Solder Retention
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): -
- Voltage Rating: -
