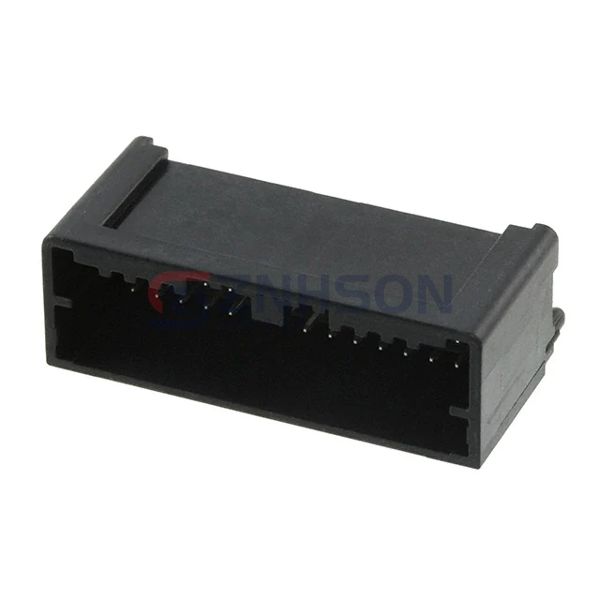

0348250240
Molex
Molex
CONN HEADER VERT 24POS 2MM
$3.25
Available to order
Reference Price (USD)
1+
$2.51000
10+
$2.40900
360+
$1.75647
720+
$1.70629
1,080+
$1.45536
5,040+
$1.30481
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0348250240 male pin header by Molex offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Molex for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 24
- Number of Rows: 2
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.218" (5.55mm)
- Contact Length - Post: 0.113" (2.87mm)
- Overall Contact Length: -
- Insulation Height: 0.614" (15.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Syndiotactic Polystyrene (SPS), Glass Filled
- Features: Board Guide, Solder Retention
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
10129382-904001BLF
Amphenol ICC (FCI)
77317-104-50LF
Samtec Inc.
TSW-150-26-S-D
Samtec Inc.
TSW-109-14-T-D
Samtec Inc.
FTSH-102-01-F-MT-TR
Cvilux USA
CI4404M1HR0-NH
Preci-Dip
804-V3-012-12-002101
Samtec Inc.
TMM-104-06-S-D-SM-P-TR
Samtec Inc.

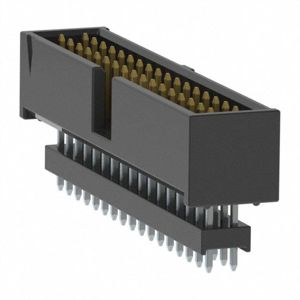

ZSS-117-01-L-D-540
