0367831201
Molex
Molex
CONN HEADER R/A 12POS 3.2MM
$1.71
Available to order
Reference Price (USD)
1+
$1.44000
10+
$1.27000
100+
$1.09600
500+
$0.89676
1,000+
$0.79712
5,000+
$0.69748
10,000+
$0.66261
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

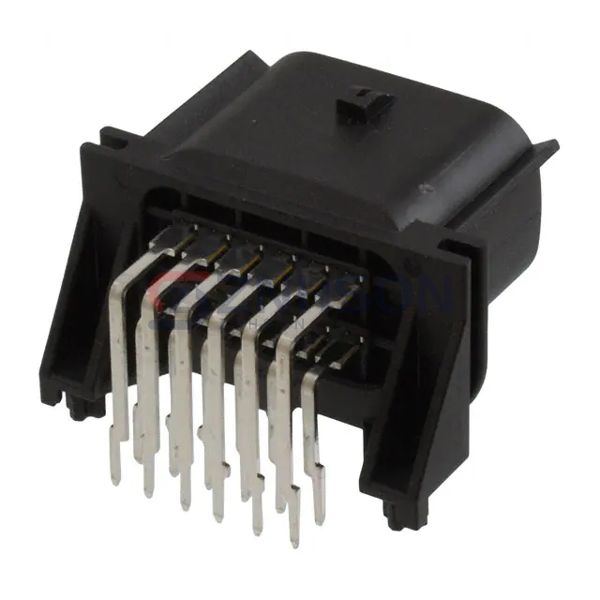

The 0367831201 by Molex is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 0367831201 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Molex ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.126" (3.20mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.233" (5.93mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Panel Mount, Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.649" (16.49mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: Board Lock
- Operating Temperature: -
- Ingress Protection: IP67 - Dust Tight, Waterproof
- Material Flammability Rating: UL94 HB
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
