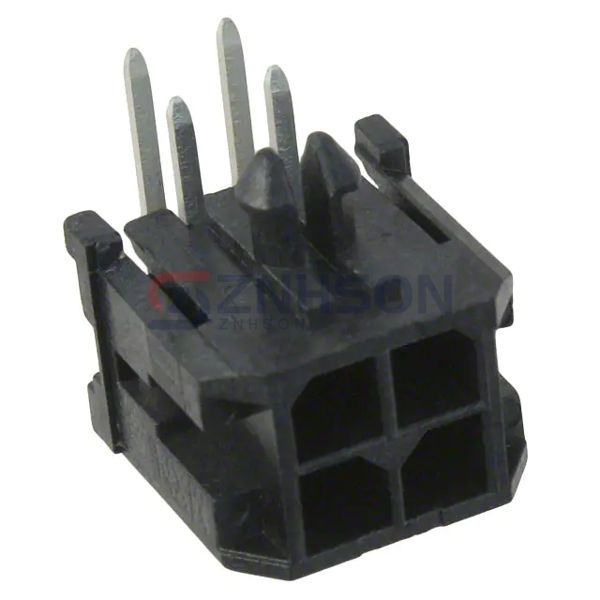

0430450401
Molex
Molex
CONN HEADER R/A 4POS 3MM
$2.26
Available to order
Reference Price (USD)
1+
$1.77000
10+
$1.61000
100+
$1.38030
500+
$1.15028
2,232+
$0.95309
6,696+
$0.87421
11,160+
$0.85449
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0430450401 male pin header by Molex provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Molex guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: -
- Insulation Height: 0.290" (7.37mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Board Lock
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 8A
- Voltage Rating: 600V
