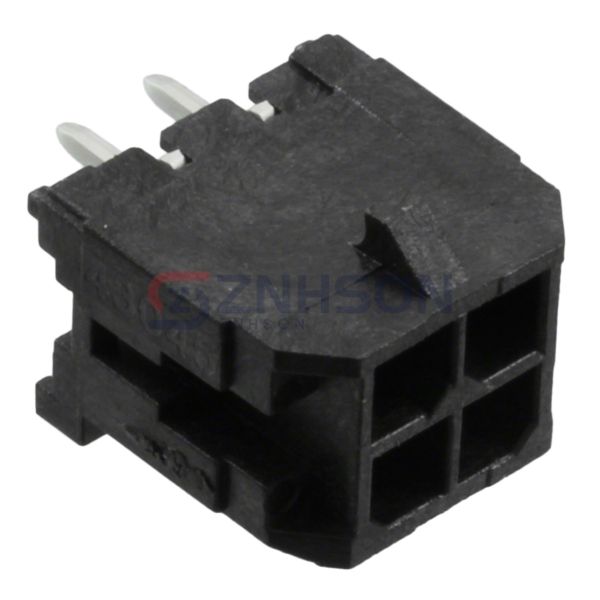

0430450429
Molex
Molex
CONN HEADER VERT 4POS 3MM
$2.25
Available to order
Reference Price (USD)
1+
$1.77000
10+
$1.60500
25+
$1.50640
50+
$1.44100
100+
$1.37550
250+
$1.24452
500+
$1.14626
2,232+
$0.94975
4,464+
$0.91700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0430450429 by Molex is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 0430450429 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Molex ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: -
- Insulation Height: 0.390" (9.91mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Board Guide
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 8A
- Voltage Rating: 600V
