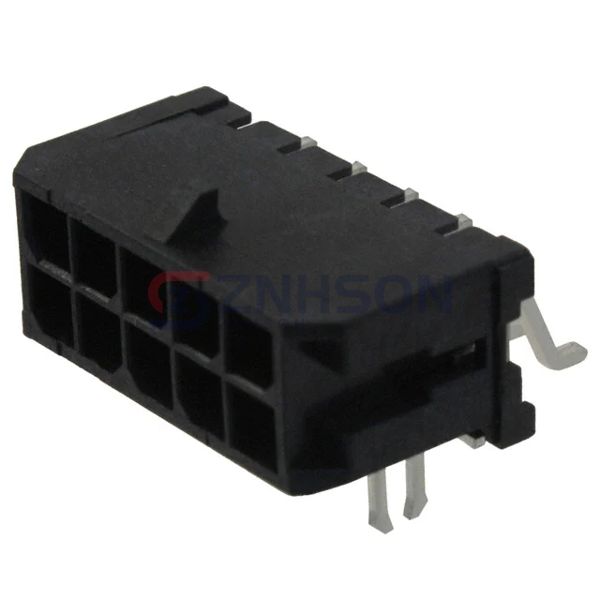

0430451006
Molex
Molex
CONN HEADER SMD R/A 10POS 3MM
$3.92
Available to order
Reference Price (USD)
200+
$2.70620
400+
$2.36793
600+
$2.30027
1,000+
$1.96200
2,000+
$1.89434
5,000+
$1.75903
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0430451006 from Molex is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 0430451006 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Molex for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.290" (7.37mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Board Lock
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 8A
- Voltage Rating: 600V
Related Products
TE Connectivity AMP Connectors
1-207121-0
Samtec Inc.
TSM-110-03-T-SV-P-TR
Preci-Dip
892-18-034-10-003101
Samtec Inc.
FTS-118-01-F-D
Sullins Connector Solutions
PBC16DFBN
Harwin Inc.
G125-MH10605M4P
Samtec Inc.
TLW-131-06-T-S
Samtec Inc.

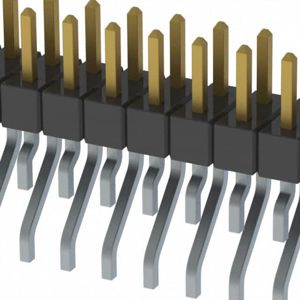

MMT-128-01-S-DH-P
