0430451009
Molex
Molex
CONN HEADER SMD R/A 10POS 3MM
$4.89
Available to order
Reference Price (USD)
200+
$3.37800
400+
$2.95575
600+
$2.87130
1,000+
$2.44905
2,000+
$2.36460
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

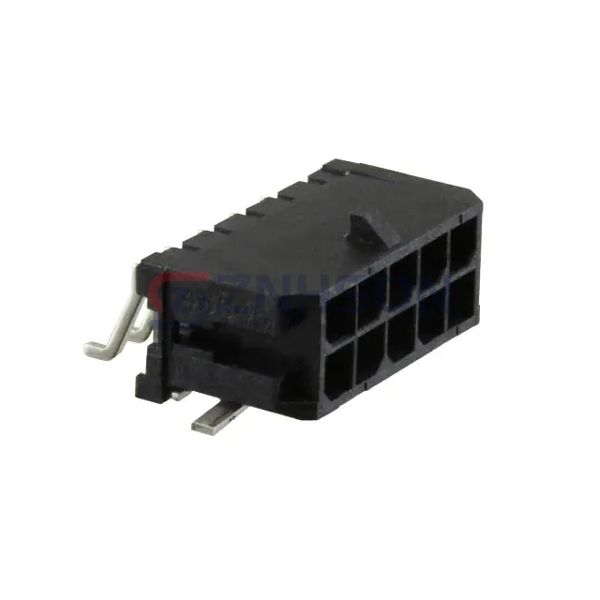

The 0430451009 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.290" (7.37mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Solder Retention
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 8A
- Voltage Rating: 600V
Related Products
Samtec Inc.
TMM-114-04-G-S
Molex
0015912220
Mill-Max Manufacturing Corp.
800-10-051-10-002000
Samtec Inc.
TMM-126-04-G-D-SM
Samtec Inc.
BKT-141-04-L-V-S-A
Samtec Inc.
ZSS-115-05-S-D-920

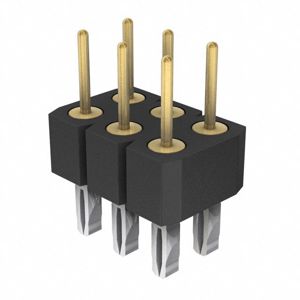

Preci-Dip
