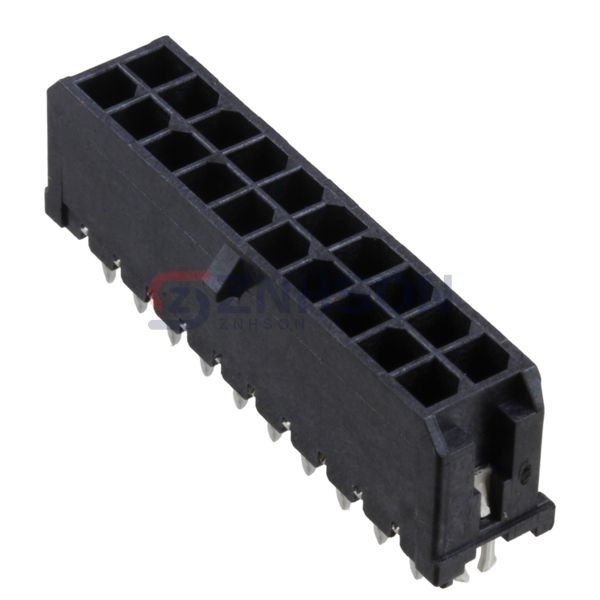

0430452025
Molex
Molex
CONN HEADER VERT 20POS 3MM
$6.41
Available to order
Reference Price (USD)
1+
$5.03000
10+
$4.83100
25+
$4.42840
50+
$4.22700
100+
$4.02580
250+
$3.52256
648+
$3.42193
1,296+
$2.91870
2,592+
$2.71742
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 0430452025 rectangular connector header by Molex. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 0430452025 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Molex for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: -
- Insulation Height: 0.390" (9.91mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Board Guide, Board Lock
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 8A
- Voltage Rating: 600V
Related Products
Mill-Max Manufacturing Corp.
800-10-050-10-002000
Samtec Inc.
TMM-106-01-T-D-SM-P
Preci-Dip
852-80-062-30-051101
Amphenol ICC (FCI)
68020-142HLF
Samtec Inc.
TSM-120-02-T-SV
Samtec Inc.
FTSH-120-03-F-DV-A
TE Connectivity AMP Connectors
146135-2
Oupiin
2111-2X05G00RB
Samtec Inc.

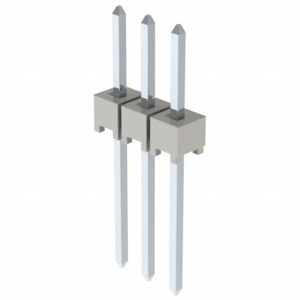

HTSW-103-09-T-S
