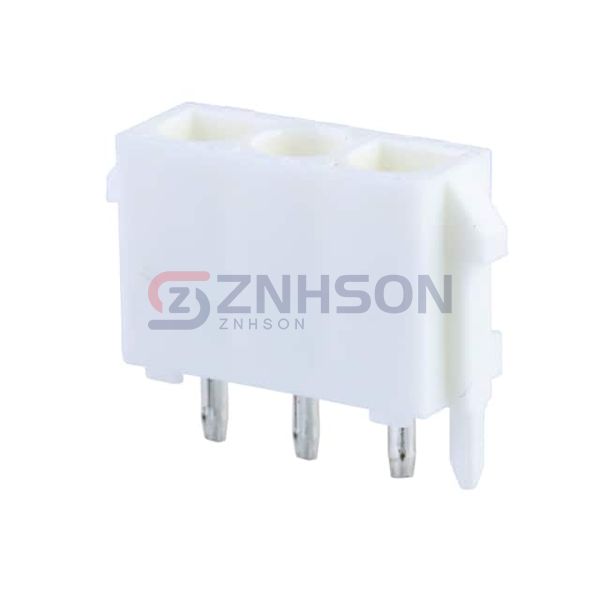

0432550121
Molex
Molex
CONN HEADER VERT 3POS 6.35MM
$0.76
Available to order
Reference Price (USD)
1+
$0.61000
10+
$0.57000
100+
$0.43700
500+
$0.38002
1,404+
$0.31352
5,616+
$0.27551
11,232+
$0.25651
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0432550121 male pin header by Molex offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Molex for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.250" (6.35mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.169" (4.30mm)
- Overall Contact Length: -
- Insulation Height: 0.550" (13.97mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 137.8µin (3.50µm)
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: Board Guide
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-2
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
