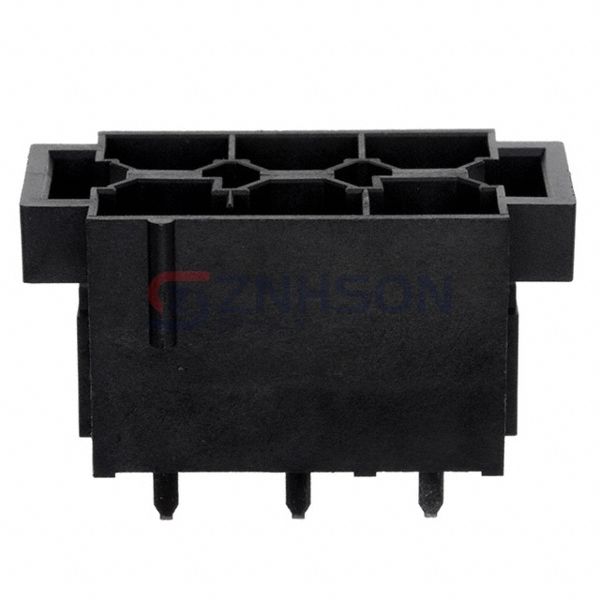

0439151109
Molex
Molex
CONN HEADER VERT 12POS 10MM
$29.07
Available to order
Reference Price (USD)
1+
$29.07250
500+
$28.781775
1000+
$28.49105
1500+
$28.200325
2000+
$27.9096
2500+
$27.618875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0439151109 by Molex is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 0439151109 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Molex ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.394" (10.00mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.201" (5.11mm)
- Overall Contact Length: -
- Insulation Height: 0.827" (21.00mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Zirconium Alloy
- Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled
- Features: Board Guide
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
FTSH-140-04-F-MT
Samtec Inc.
FTE-106-01-G-DV
Preci-Dip
850-80-027-10-001101
Molex
0878330832
Samtec Inc.
TFC-113-02-F-D
Molex
0702800678
Samtec Inc.
TSW-105-08-SS-D

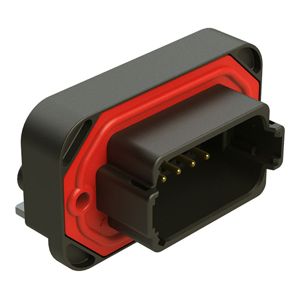

Amphenol Sine Systems Corp
AT13-12PB-BM02

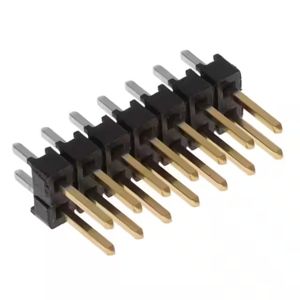

Samtec Inc.
