0447641603
Molex
Molex

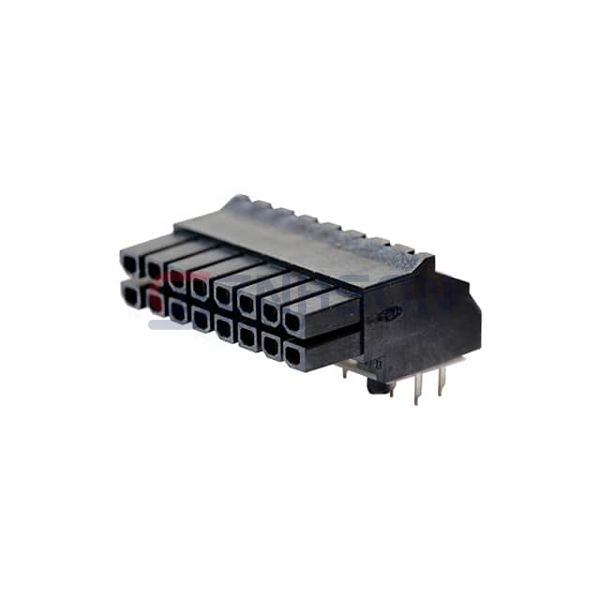

CONN RCPT 16P 0.118 GOLD PCB R/A
$6.01
Available to order
Reference Price (USD)
1,560+
$4.72083
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0447641603 Molex Rectangular Connectors - Headers, Receptacles, and Female Sockets offer superior connectivity solutions for modern electronics. Designed with versatility in mind, these connectors support high-speed data transfer and power delivery. Their compact design and rugged build make them suitable for aerospace, military, and IoT applications. Whether you need board-to-board, cable-to-board, or wire-to-wire connections, Molex provides reliable options. Examples include avionics systems, defense equipment, and smart home devices.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 16
- Number of Positions Loaded: All
- Pitch - Mating: 0.118" (3.00mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Insulation Color: Black
- Insulation Height: 0.402" (10.20mm)
- Contact Length - Post: 0.155" (3.94mm)
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Board Guide
- Current Rating (Amps): 5A
- Voltage Rating: 600VAC
