0462070012
Molex
Molex

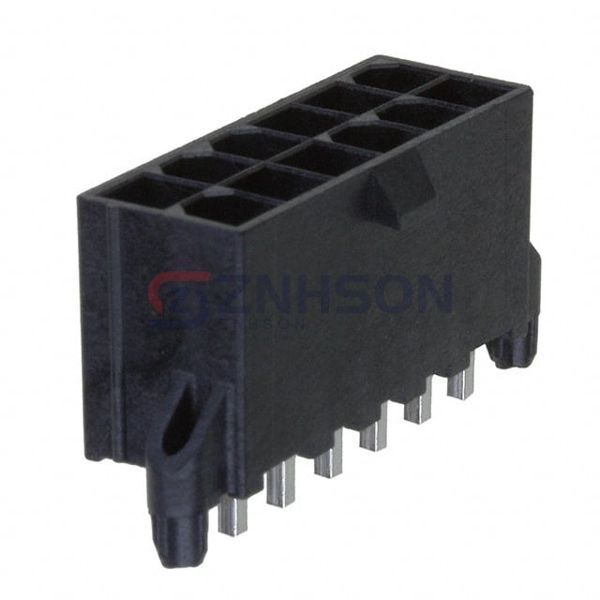

CONN HEADER VERT 12POS 4.2MM
$4.80
Available to order
Reference Price (USD)
1+
$4.80000
500+
$4.752
1000+
$4.704
1500+
$4.656
2000+
$4.608
2500+
$4.56
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 0462070012 rectangular connector header by Molex. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 0462070012 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Molex for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.165" (4.20mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.144" (3.66mm)
- Overall Contact Length: -
- Insulation Height: 0.535" (13.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Board Guide
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
2355177-6
Sullins Connector Solutions
PEC26DABN
Mill-Max Manufacturing Corp.
852-10-032-20-001000
Samtec Inc.
TLW-101-06-G-S
Samtec Inc.
FTE-108-01-G-DH-TR
Sullins Connector Solutions
PRPC036DABN-RC
Adam Tech
LHB-02-SA2
Samtec Inc.
HTST-112-01-T-DV

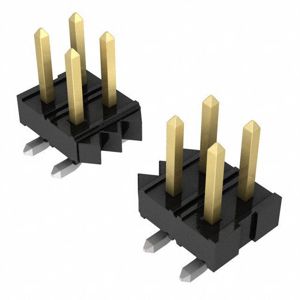

Molex
