0522072733
Molex

Molex

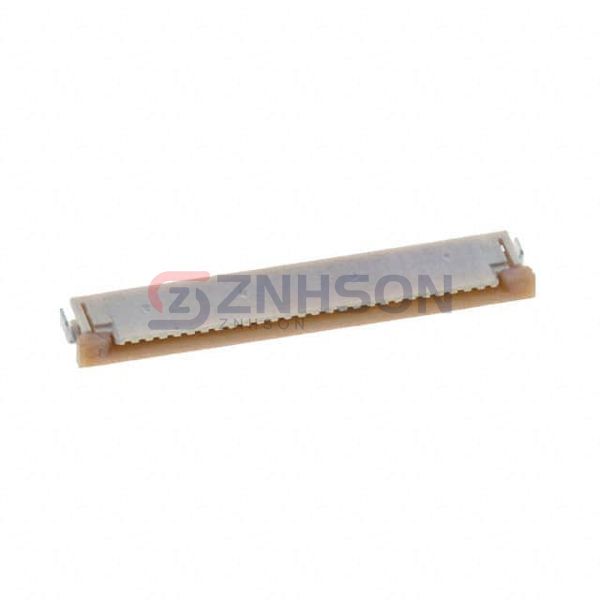

CONN FFC FPC TOP 27POS 1MM R/A
$2.93
Available to order
Reference Price (USD)
1,000+
$1.37910
2,000+
$1.33313
3,000+
$1.28716
5,000+
$1.22280
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing the 0522072733 FFC/FPC Connectors from Molex, where cutting-edge design meets uncompromising quality. These connectors are optimized for ultra-thin devices, offering a 0.3mm pitch option and a stack height as low as 1.0mm. The 0522072733 series shines in battery management systems, LED displays, and portable diagnostic tools, thanks to its vibration resistance and IP-rated variants. Molex's eco-friendly manufacturing process adheres to RoHS directives, aligning with sustainable practices. Opt for 0522072733 when your project demands space efficiency without sacrificing performance.
Specifications
- Product Status: Active
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Top
- Number of Positions: 27
- Pitch: 0.039" (1.00mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.106" (2.70mm)
- Locking Feature: Slide Lock
- Cable End Type: Tapered
- Contact Material: Phosphor Bronze
- Contact Finish: Tin Bismuth
- Housing Material: Polyamide (PA), Nylon, Glass Filled
- Actuator Material: Polyphenylene Sulfide (PPS)
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: 125V
- Operating Temperature: -40°C ~ 85°C
- Material Flammability Rating: UL94 V-0
