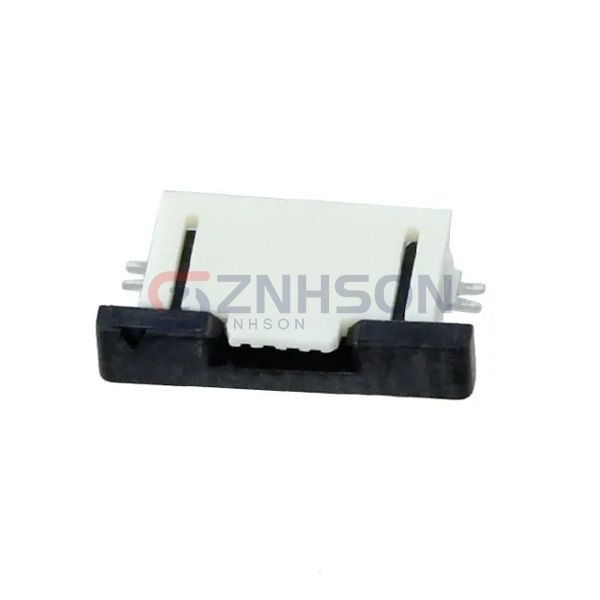

0527450433
Molex

Molex
CONN FFC FPC TOP 4POS 0.50MM R/A
$0.92
Available to order
Reference Price (USD)
1,000+
$0.41069
2,000+
$0.39824
3,000+
$0.37335
5,000+
$0.36091
10,000+
$0.33602
25,000+
$0.32357
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0527450433 FFC/FPC Connectors by Molex redefine compact and reliable interconnects for advanced electronics. Engineered with a focus on miniaturization and high-speed data transfer, these connectors are essential for modern PCB designs. Key benefits include reduced crosstalk, enhanced mechanical stability, and broad temperature tolerance (-40 C to +105 C). From smart home systems to aerospace instrumentation, the 0527450433 delivers consistent performance. Molex's innovative design prioritizes user-friendly features like tool-less locking mechanisms. Select 0527450433 for a connector that bridges innovation and practicality in your applications.
Specifications
- Product Status: Active
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Top
- Number of Positions: 4
- Pitch: 0.020" (0.50mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.079" (2.00mm)
- Locking Feature: Slide Lock
- Cable End Type: Straight, Tapered
- Contact Material: Phosphor Bronze
- Contact Finish: Tin Bismuth
- Housing Material: Polyamide (PA), Nylon, Glass Filled
- Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: 50V
- Operating Temperature: -40°C ~ 85°C
- Material Flammability Rating: UL94 V-0
