0530480960
Molex
Molex
HDR RA 9 CIRC 1.25 DIP TH
$0.55
Available to order
Reference Price (USD)
1+
$0.55190
500+
$0.546381
1000+
$0.540862
1500+
$0.535343
2000+
$0.529824
2500+
$0.524305
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0530480960 by Molex is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 0530480960 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Molex ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 9
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.091" (2.30mm)
- Overall Contact Length: -
- Insulation Height: 0.138" (3.50mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 125VAC/DC
Related Products
Molex
0901310148
Preci-Dip
890-70-030-10-003101
Molex
2009890212
Samtec Inc.
TMM-108-02-S-D
Samtec Inc.
TSM-107-01-T-DV-006-P
Samtec Inc.
TSM-110-04-T-SV-A-P-TR
Amphenol ICC (FCI)
54102-S0503LF
Molex
0022045277
Samtec Inc.

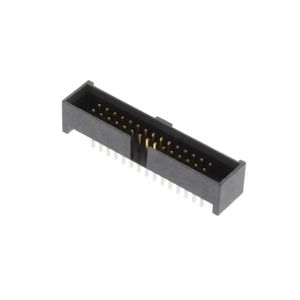

SHF-115-01-S-D-TH
