0532900480
Molex
Molex
CONN HEADER VERT 4POS 2MM
$0.56
Available to order
Reference Price (USD)
1+
$0.44000
10+
$0.41600
100+
$0.31880
500+
$0.27720
3,000+
$0.20790
6,000+
$0.20097
12,000+
$0.18434
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

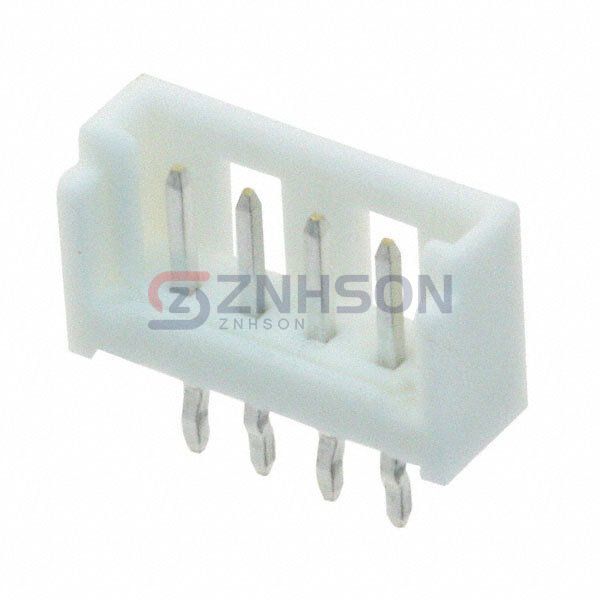

The 0532900480 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.130" (3.30mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: 0.335" (8.51mm)
- Insulation Height: 0.236" (6.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
