0532900880
Molex
Molex
CONN HEADER VERT 8POS 2MM
$0.83
Available to order
Reference Price (USD)
1+
$0.83000
500+
$0.8217
1000+
$0.8134
1500+
$0.8051
2000+
$0.7968
2500+
$0.7885
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

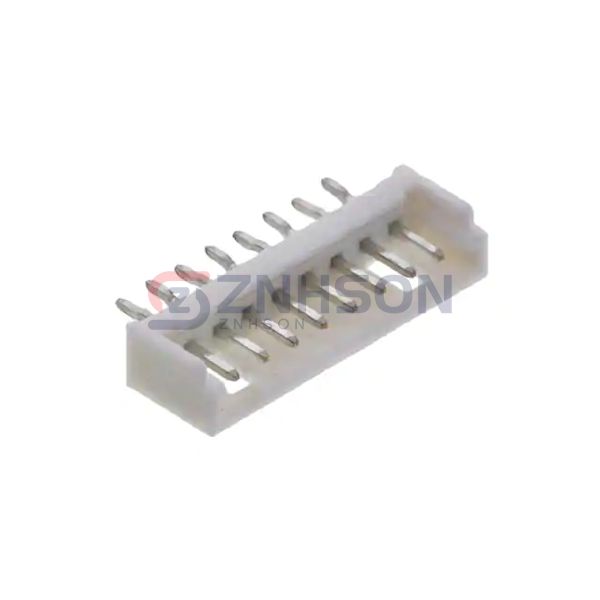

The 0532900880 from Molex is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 0532900880 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Molex for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.130" (3.30mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: 0.335" (8.51mm)
- Insulation Height: 0.236" (6.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
