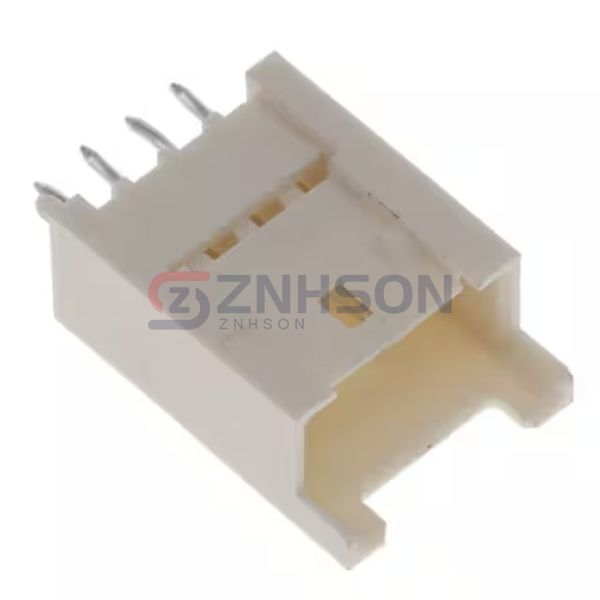

0535170410
Molex
Molex
CONN HEADER VERT 4POS 2.5MM
$0.79
Available to order
Reference Price (USD)
1+
$0.75000
10+
$0.66000
100+
$0.56940
900+
$0.45290
1,800+
$0.38820
5,400+
$0.36232
10,800+
$0.34420
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0535170410 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: 0.610" (15.50mm)
- Insulation Height: 0.689" (17.50mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Guide, Glow Wire Compliant
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
