0554870519
Molex
Molex

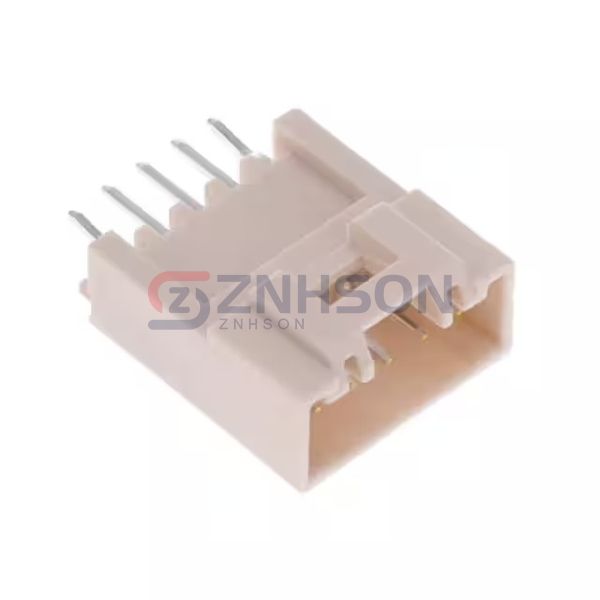

CONN HEADER VERT 5POS 2MM
$0.72
Available to order
Reference Price (USD)
1+
$0.57000
10+
$0.53300
100+
$0.40890
780+
$0.32004
1,560+
$0.28448
5,460+
$0.25781
10,140+
$0.24003
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0554870519 male pin header by Molex offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Molex for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: 0.144" (3.66mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.604" (15.35mm)
- Insulation Height: 0.520" (13.20mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
- Features: Board Guide
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): -
- Voltage Rating: -
