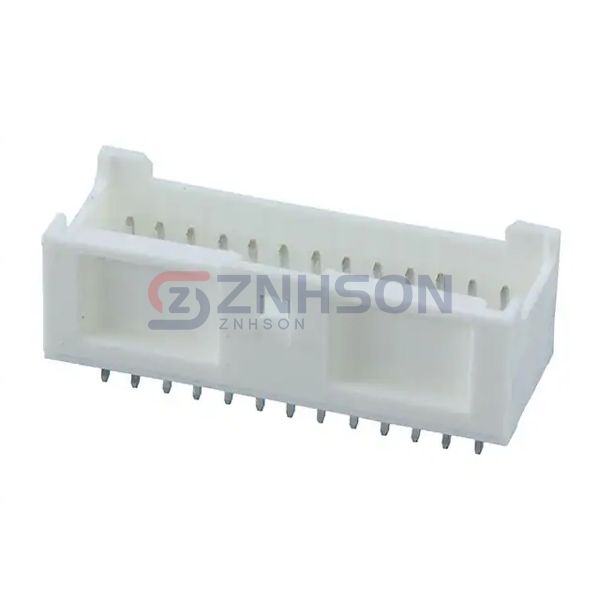

0559172610
Molex
Molex
CONN HEADER VERT 26POS 2MM
$1.45
Available to order
Reference Price (USD)
1+
$1.16000
10+
$1.02000
450+
$0.79967
900+
$0.69970
1,350+
$0.63973
5,400+
$0.55976
10,350+
$0.53177
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0559172610 from Molex is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 0559172610 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Molex for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.197" (5.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.150" (3.81mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: 0.366" (9.30mm)
- Insulation Height: 0.384" (9.75mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Board Guide
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
77317-812-62LF
Amphenol ICC (FCI)
68016-110HLF
Amphenol ICC (FCI)
77315-101-02LF
Amphenol ICC (FCI)
95278-802A16LF
Molex
0705510001
Amphenol ICC (FCI)
75160-156-36LF
Samtec Inc.
FTSH-107-04-F-MT
Hirose Electric Co Ltd

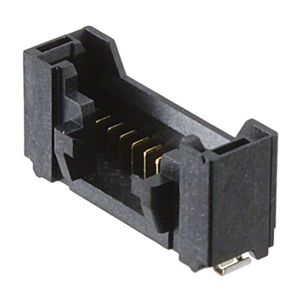

DF50A-12P-1V(51)
