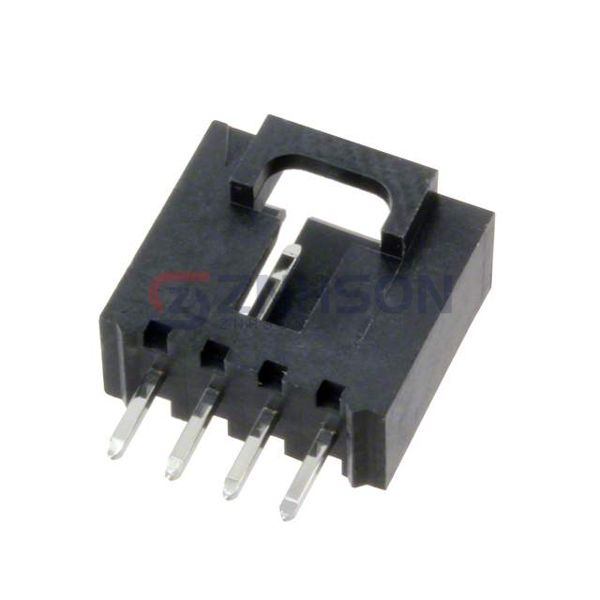

0705430250
Molex
Molex
CONN HEADER VERT 4POS 2.54MM
$1.80
Available to order
Reference Price (USD)
1+
$1.42000
10+
$1.28400
100+
$1.10080
500+
$0.91736
1,000+
$0.78630
5,000+
$0.69719
10,000+
$0.68146
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 0705430250 rectangular connector header from Molex. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 0705430250 meets the highest industry standards. Molex provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.160" (4.06mm)
- Overall Contact Length: 0.500" (12.70mm)
- Insulation Height: 0.465" (11.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 150.0µin (3.81µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 250V
Related Products
Samtec Inc.
HTSW-135-07-G-S
Samtec Inc.
MMT-108-02-F-SH-K
Würth Elektronik
64902429522
Samtec Inc.
FTSH-124-03-L-DV-A
Samtec Inc.
TSM-107-02-L-DV-003-P
Sullins Connector Solutions
PEC31SBCN
Molex
0022111081
Molex

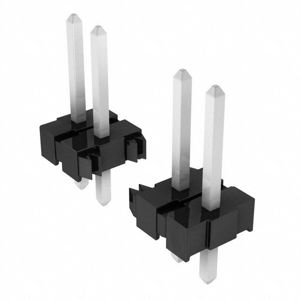

0026481080
