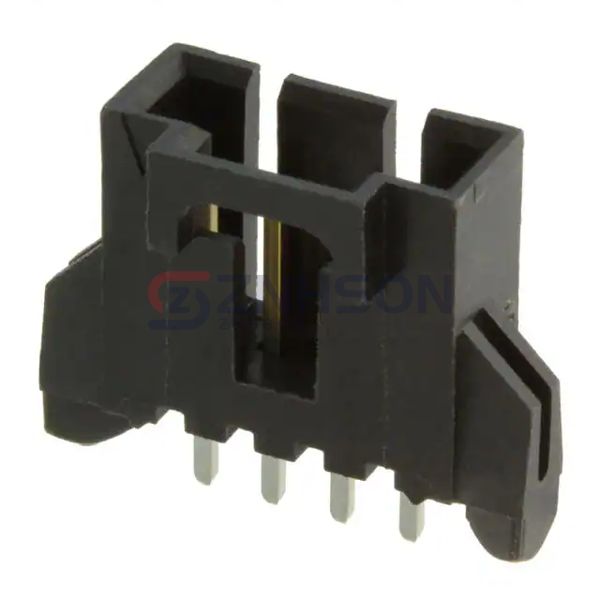

0705450073
Molex
Molex
CONN HEADER VERT 4POS 2.54MM
$1.72
Available to order
Reference Price (USD)
1+
$1.55000
10+
$1.41000
100+
$1.20860
500+
$1.00712
1,440+
$0.86325
5,760+
$0.76541
10,080+
$0.74815
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 0705450073 rectangular connector header from Molex for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Molex is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.470" (11.94mm)
- Insulation Height: 0.465" (11.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 250V
