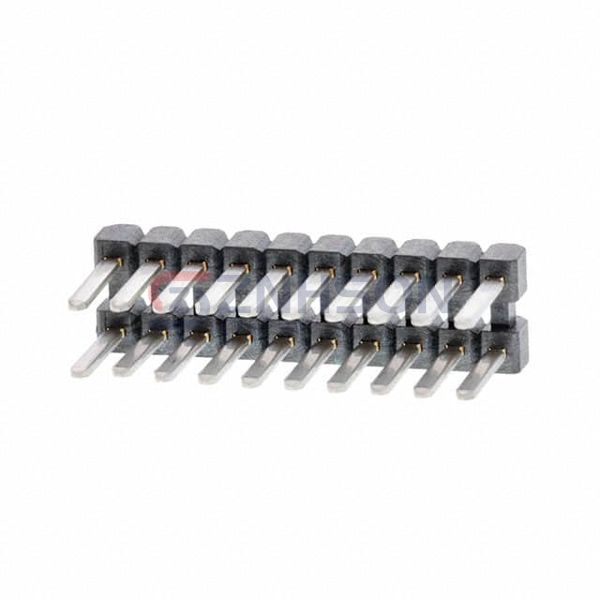

0757571401
Molex
Molex
CONN HEADER VERT 20POS 3.5MM
$5.04
Available to order
Reference Price (USD)
1+
$3.89000
10+
$3.73400
210+
$3.11200
630+
$2.64521
1,050+
$2.25620
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0757571401 by Molex is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 0757571401 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Molex ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Blade
- Pitch - Mating: 0.138" (3.50mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.236" (6.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.441" (11.20mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.738" (18.75mm)
- Insulation Height: 0.177" (4.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 59.0µin (1.50µm)
- Contact Finish - Post: Tin
- Contact Material: Cartridge Brass
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TMM-120-01-L-S-RA
TE Connectivity AMP Connectors
3-644694-6
Amphenol ICC (FCI)
861400102YO2317LF
Samtec Inc.
TSW-145-17-L-D
Samtec Inc.
TSW-112-14-S-S
3M
N3764-5202RB
Molex

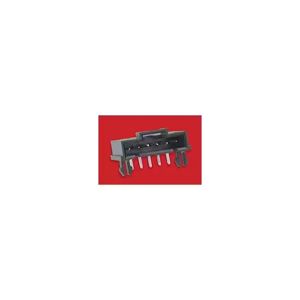

70551-0008
Samtec Inc.

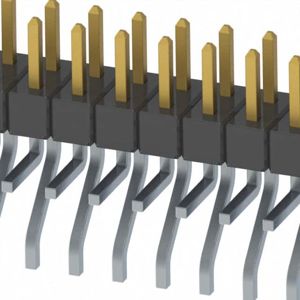

MMT-117-01-L-MT
TE Connectivity AMP Connectors

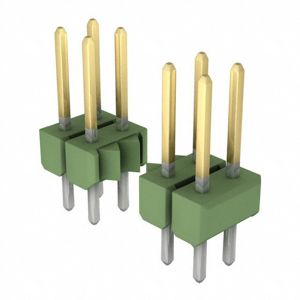

1-826656-4
