0757571481
Molex
Molex

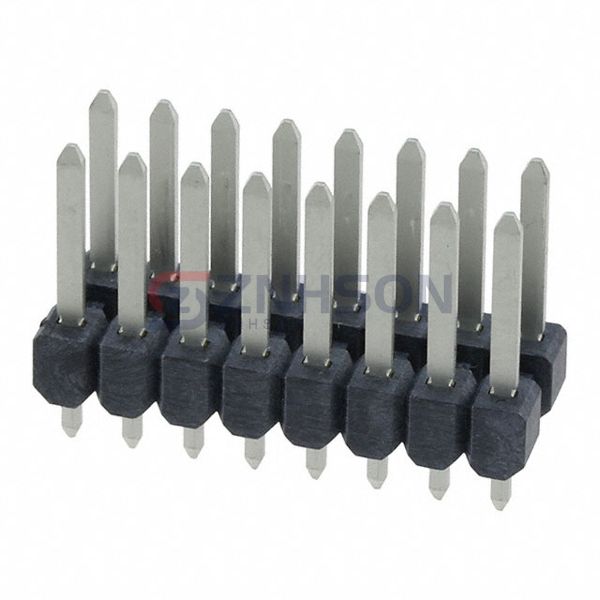

CONN HEADER VERT 16POS 3.5MM
$3.36
Available to order
Reference Price (USD)
1+
$2.59000
10+
$2.48900
266+
$1.81511
532+
$1.76323
1,064+
$1.50394
5,054+
$1.34836
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0757571481 from Molex is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 0757571481 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Molex for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Blade
- Pitch - Mating: 0.138" (3.50mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.236" (6.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.441" (11.20mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.738" (18.75mm)
- Insulation Height: 0.177" (4.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 59.0µin (1.50µm)
- Contact Finish - Post: Tin
- Contact Material: Cartridge Brass
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
