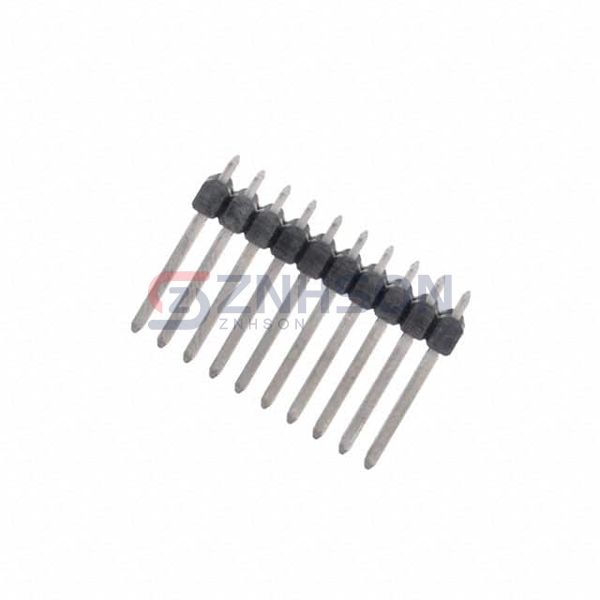

0757575101

Molex
0757575101 Preview
Molex
CONN HEADER VERT 20POS 3.5MM
$6.70
Available to order
Reference Price (USD)
1+
$5.39000
10+
$5.17100
210+
$4.30881
630+
$3.66248
1,050+
$3.12388
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Connector Type: Header, Breakaway
  • Contact Type: Male Blade
  • Pitch - Mating: 0.138" (3.50mm)
  • Number of Positions: 20
  • Number of Rows: 2
  • Row Spacing - Mating: 0.236" (6.00mm)
  • Number of Positions Loaded: All
  • Style: Board to Cable/Wire
  • Shrouding: Unshrouded
  • Mounting Type: Through Hole
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Length - Mating: 0.633" (16.09mm)
  • Contact Length - Post: 0.120" (3.05mm)
  • Overall Contact Length: 0.931" (23.64mm)
  • Insulation Height: 0.177" (4.50mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Tin
  • Contact Finish Thickness - Mating: 100.0µin (2.54µm)
  • Contact Finish - Post: Tin
  • Contact Material: Cartridge Brass
  • Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
  • Features: -
  • Operating Temperature: -
  • Ingress Protection: -
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Black
  • Current Rating (Amps): -
  • Voltage Rating: -

Related Products

TE Connectivity AMP Connectors

171882-1

Amphenol ICC (FCI)

75160-322-36LF

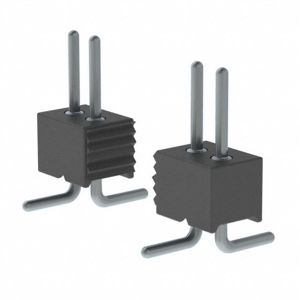

Mill-Max Manufacturing Corp.

850-40-021-30-001000

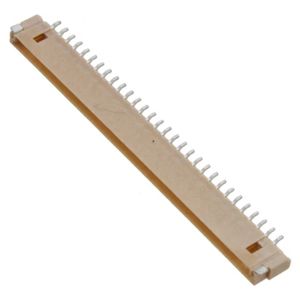

JAE Electronics

FI-S30P-HFE

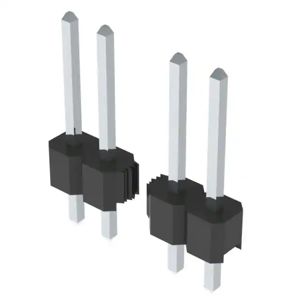

Sullins Connector Solutions

PREC035SFAN-RC

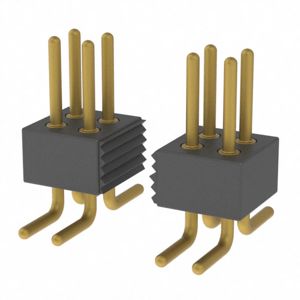

Mill-Max Manufacturing Corp.
