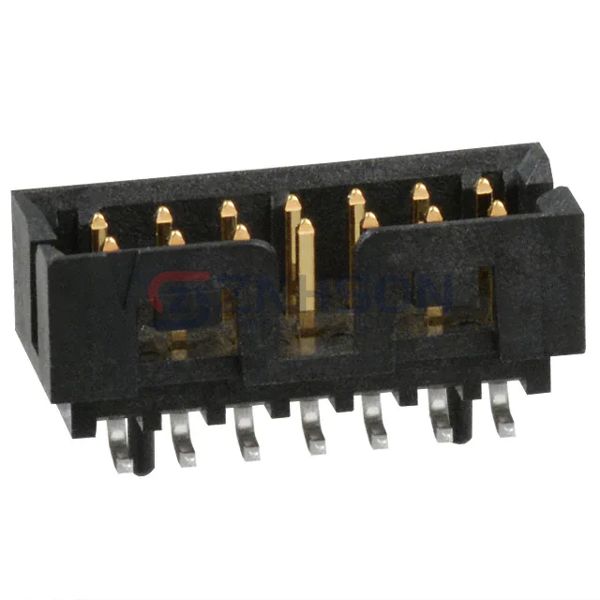

0878321420
Molex
Molex
CONN HEADER SMD 14POS 2MM
$2.33
Available to order
Reference Price (USD)
1+
$1.83000
10+
$1.66000
100+
$1.42280
500+
$1.18562
3,200+
$0.94850
6,400+
$0.90108
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0878321420 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.141" (3.60mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.252" (6.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: Board Guide
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-122-02-S-DV-LC
Preci-Dip
804-V3-093-10-193101
Samtec Inc.
TMM-102-02-T-S
Samtec Inc.
EHT-105-01-S-D-RA-05
Samtec Inc.
FTSH-138-02-L-D-RA
Preci-Dip
850-80-047-30-001101
Samtec Inc.
BKT-151-01-L-V
Samtec Inc.
TMM-120-01-TM-D-SM-P
Preci-Dip

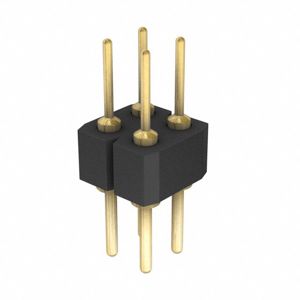

450-10-204-00-001101
